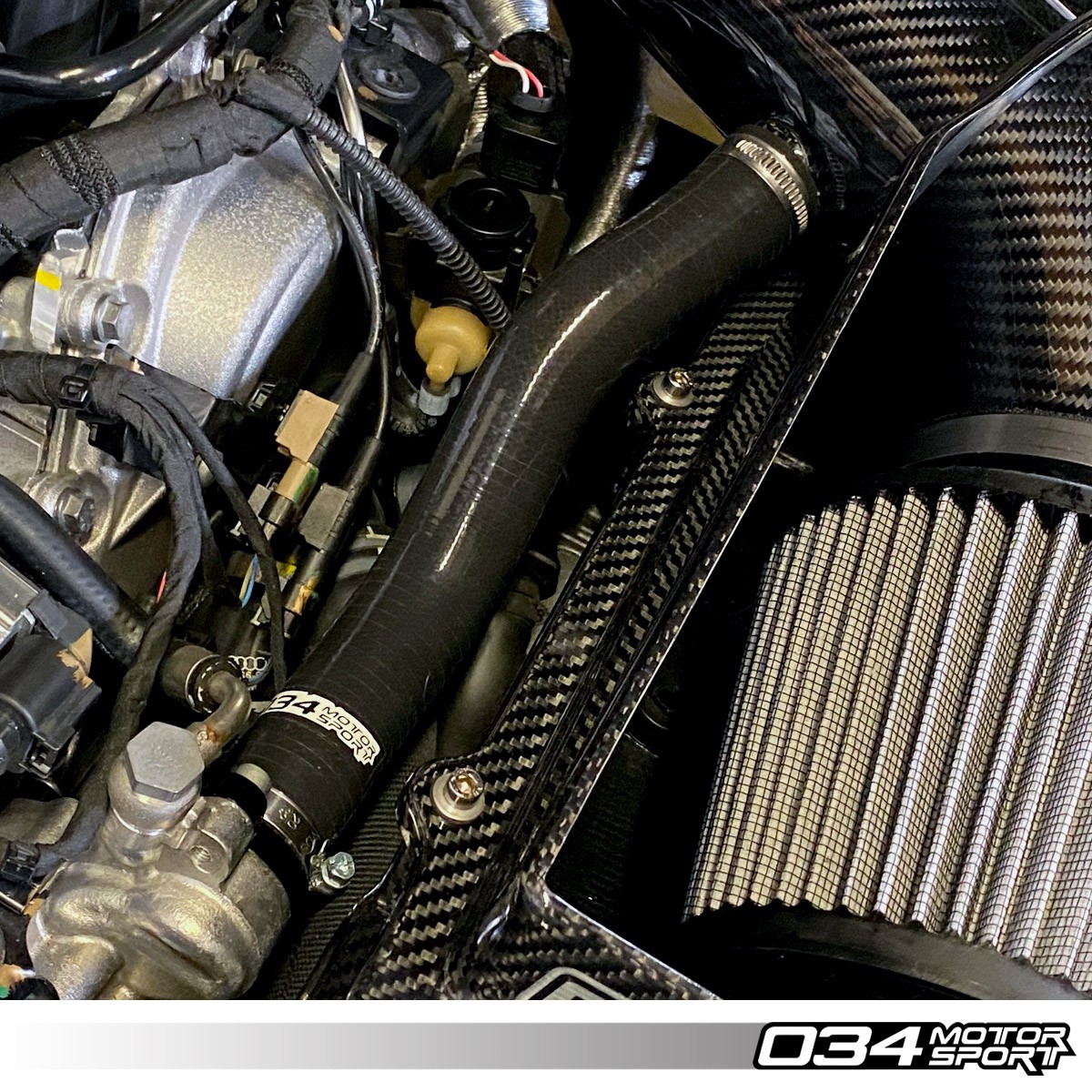

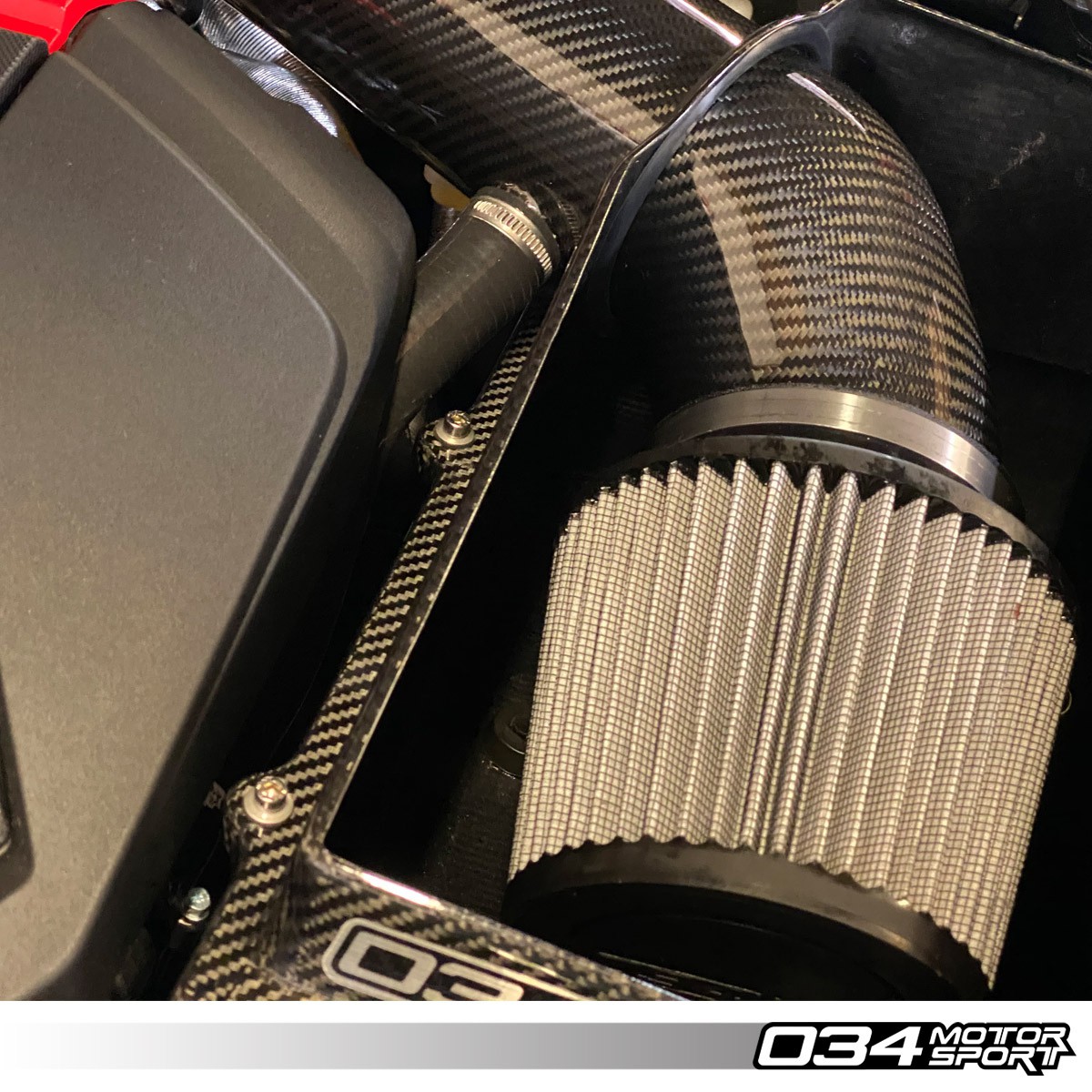

The X34 Evo Intake Adapter is a critical component for upgrading 2019+ 8V.5 RS3 and 8S TTRS intakes. This adapter allows aftermarket air intakes for earlier models to connect to the OEM diverter valve located on the throttle body elbow.
Those that are looking to upgrade the intake on a 2019+ Audi RS3 or TTRS will notice their diverter valve hose is a different design than those on earlier model vehicles. Without an adapter, intakes for earlier versions of these vehicles will not fit. The X34 Evo Intake Adapter, constructed out of 6061-T6 billet aluminum, allows for easy conversion to the new OEM diverter valve style. The included 3-ply reinforced molded silicone hose ensures that your intake system stays sealed under all conditions and pressures. With a simple bolt-on design, the installation of the adapter is a breeze!
NOTE: This product is not necessary for 2017-2018 RS3’s and TTRS’s as they do not utilize the bolt-on hose style for the diverter valve outlet. This product is required for 2019+ models with the bolt-on hose style.

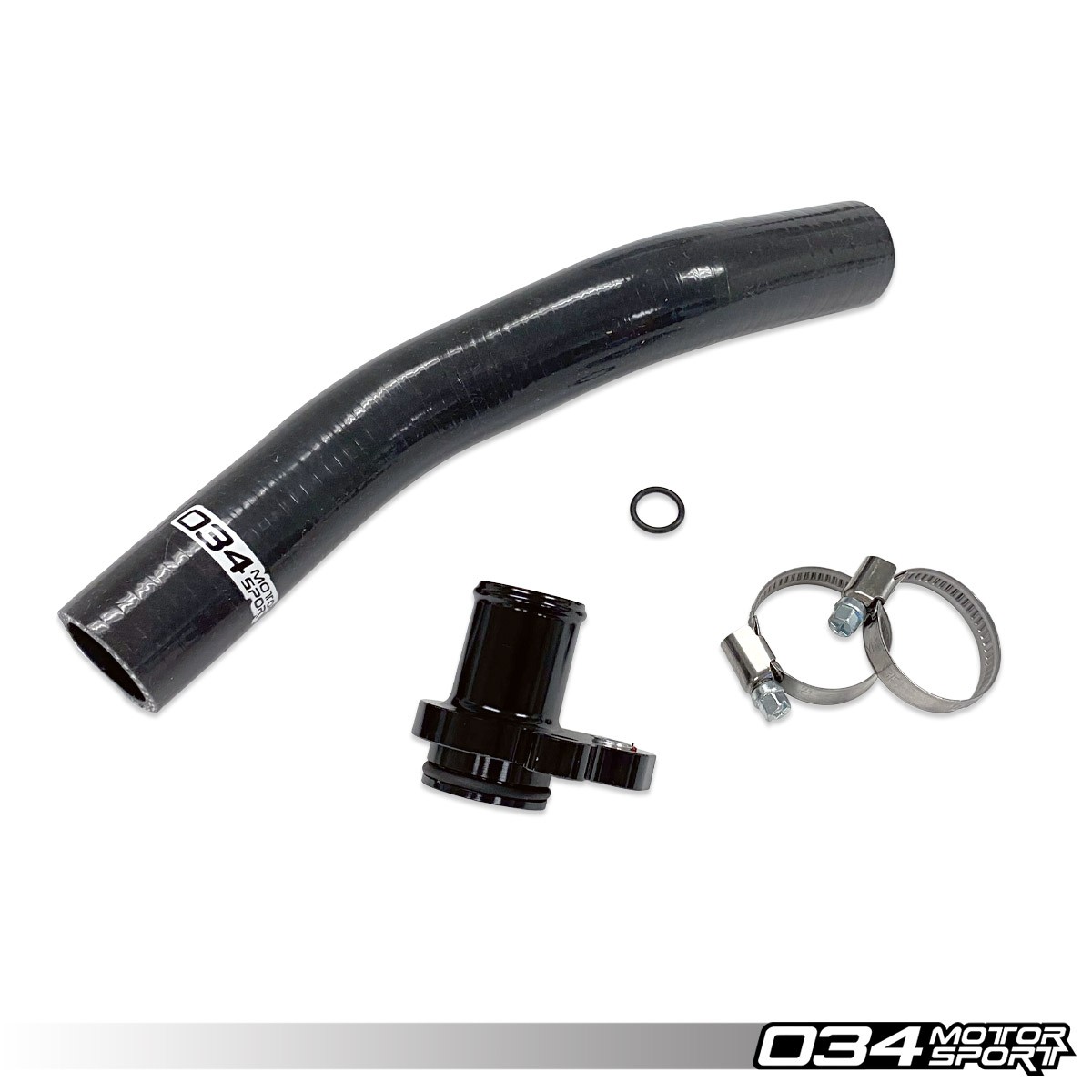

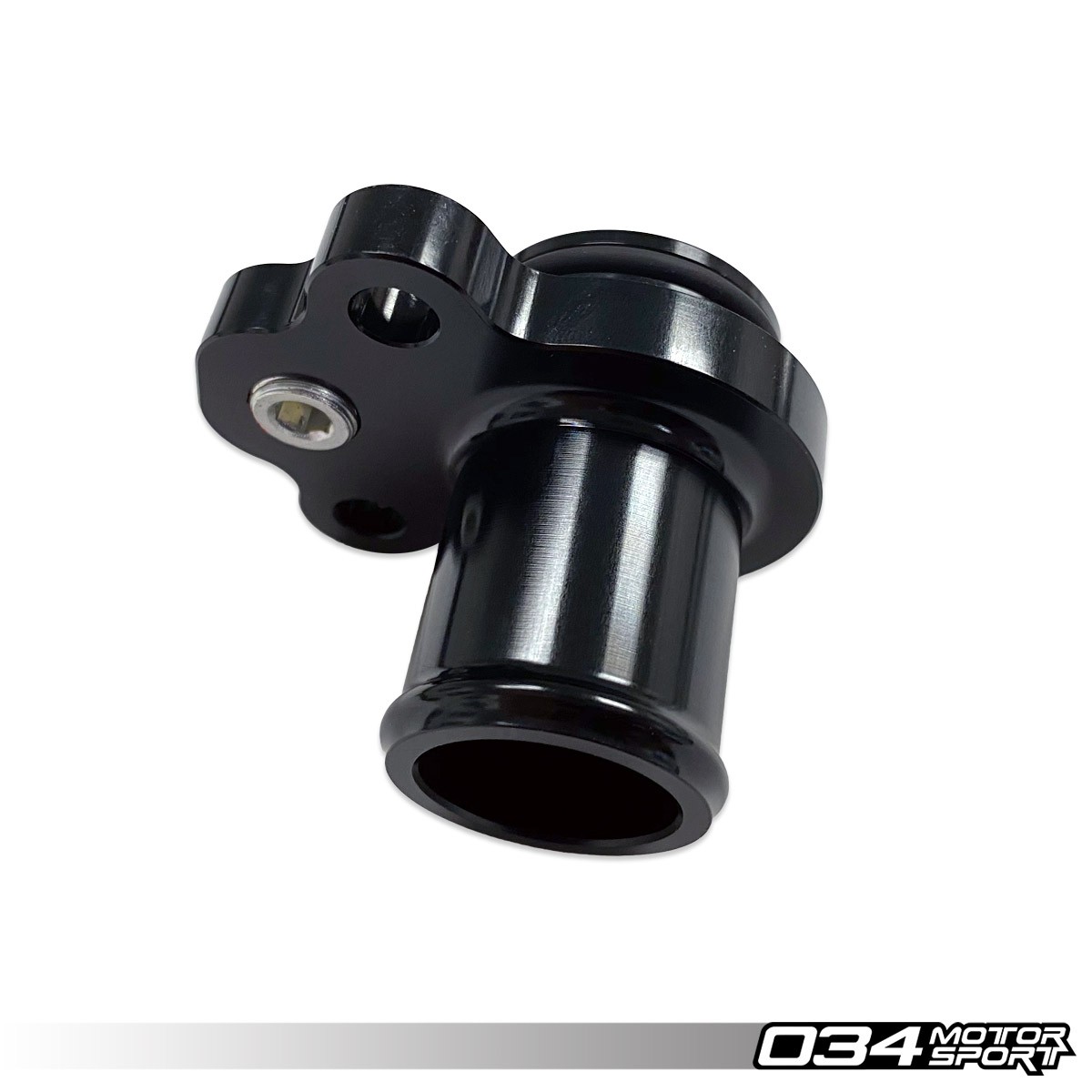

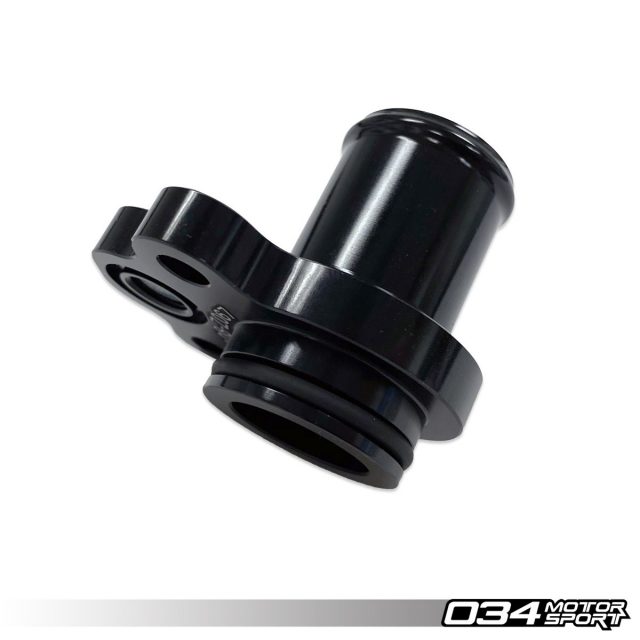

Billet 6061-T6 Aluminum CNC Machined X34 Inlet Hose Adapter

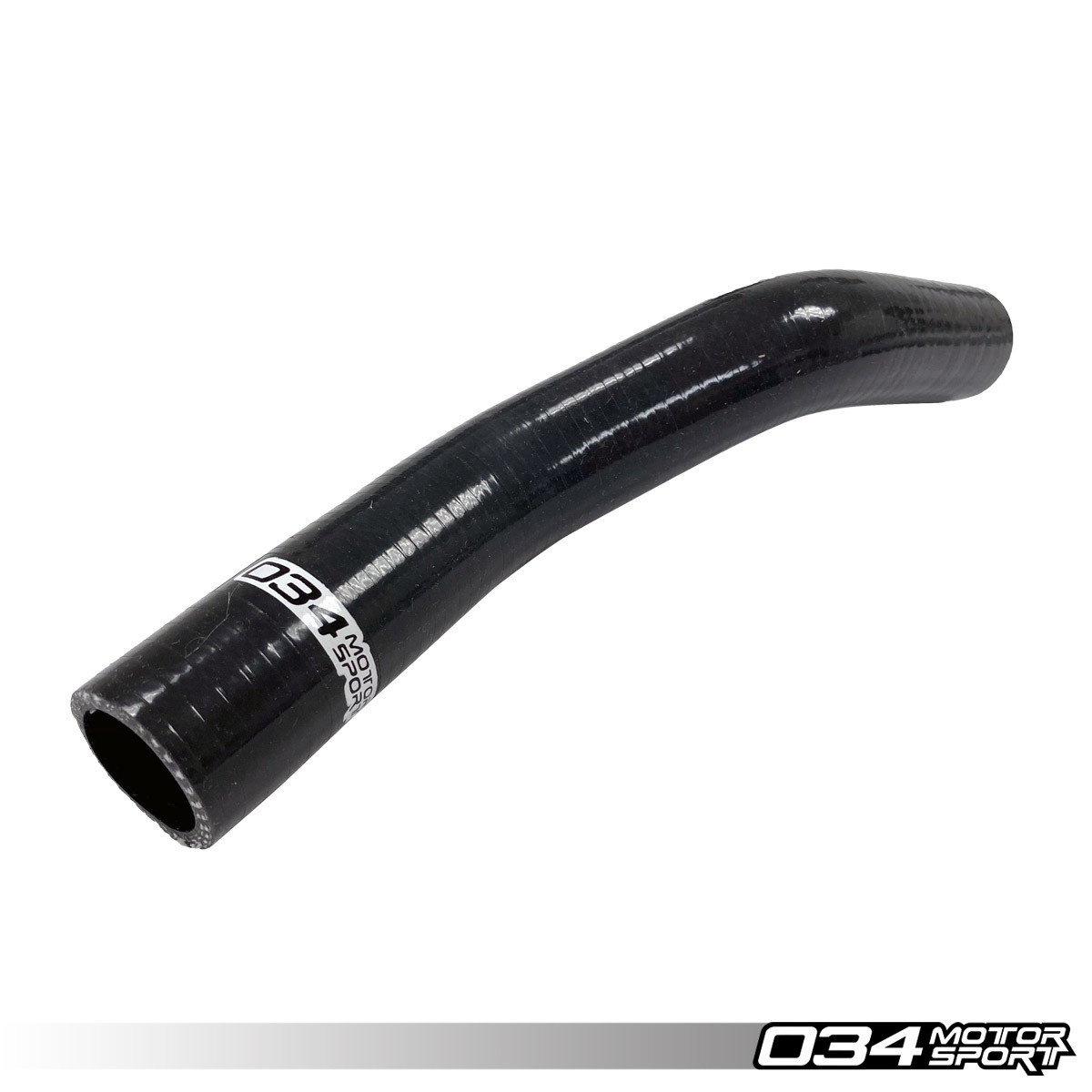

X34 Silicone Inlet Hose
M20x32 Worm Drive Clamp x2
1/8″ NPT Plug
25×2.5mm Viton O-Ring
12×2.0mm Viton O-Ring
This item must be used with one of the following 2.5TFSI EVO DAZA intake systems
034-108-1014: X34 Carbon Fiber Closed Top CAI
034-108-1015: X34 Carbon Fiber Open Top CAI
034-108-1030: X34 Carbon Fiber Closed Top Intake Bundle
034-108-1025: X34 Carbon Fiber Open Top Intake Bundle
NOTE: This kit should also work with other manufacturers intake systems designed for the earlier years of the Audi 8V.5 RS3 and 8S TTRS.
